The Role of Precision Aluminum Tube Drawing in Cycling: Combining High Hardness with Optimal Lightweight Design

Share:
Aluminum Alloy Tube Drawing and Variable Wall Thickness Technology

Table of Contents

  1. Introduction to Tube Drawing Processes
  2. Innovations in Aluminum Tube Drawing Techniques
  3. Distinctive Features of Taiwan's Cycling Industry
  4. Future Trends – The Rise of Integrated Handlebars?
  5. Conclusion

Introduction to Tube Drawing Processes


Tube drawing has long been a key manufacturing technique in the bicycle industry, primarily aimed at reducing material weight while enhancing density and strength.



For instance, if a client requires an outer diameter (OD) of Ø31.8 mm with a wall thickness ranging from 1.5 mm to 2.0 mm, the starting material might have an OD of Ø34.9 mm with a wall thickness of 3.0 mm or 3.5 mm. After the tube drawing process, the final product will have the desired OD of Ø31.8 mm and a double butted wall thickness of 1.5 mm to 2.0 mm. This process achieves the specified dimensions while effectively increasing strength and reducing weight.

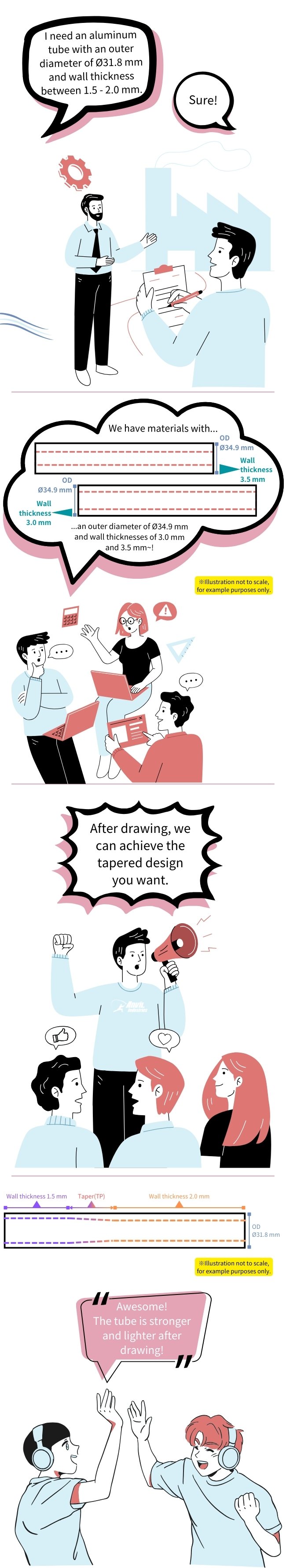

Anvil Industries achieves increased strength and reduced weight through tube drawing for variable wall thickness
<Through tube drawing, the process enhances strength and reduces weight with varied wall thickness>



This not only makes the tube material lighter but also increases its strength. The tube drawing process often involves multiple operations, especially when manufacturing high-performance bicycle frames, where multiple tube drawing steps may be required to achieve specific wall thicknesses at different parts. Beyond the basic tube drawing process, several advanced techniques can be applied to precisely shape these materials. These include double-ended tube drawing, tube tapering, or double butted techniques, utilizing different mandrels for each task. This technology allows for the adjustment of wall thickness at various points along the tube as needed, meeting specific customization requirements. It provides an efficient way to precisely control the structure and weight of the product, ensuring that the final product remains lightweight yet performs excellently, particularly vital for products requiring light and strong materials.

Innovations in Aluminum Tube Drawing Techniques


The Impact of the Rise of Mountain Biking
<The Impact of the Rise of Mountain Biking>


Since the 1980s, as mountain biking surged in popularity, the market demanded a technology that not only lightens bicycle frames but also maintains their durability. Early aluminum frames, while lighter, needed thicker walls to match the strength of steel, paradoxically increasing weight and possibly diminishing ride comfort. By 1988, engineers from well-known bicycle brands conducted extensive research on aluminum tubing and discovered that various parts of the bicycle frame experience differing stress levels. For instance, the center of the handlebar and the joint to the upright tube bear less stress, while the grip areas endure more. Based on these findings, they devised a design strategy that increases wall thickness where strength is critical and decreases it where less is required, achieving an optimal balance between strength and weight.



This innovative approach led to the development of tube drawing technology, now extensively applied in mid-to-high-end aluminum and steel frames. This technique adjusts the wall thickness of tubing at various points through drawing or compressing, ranging from single to multiple butted tubes. This not only offers a more precise analysis of stress but also reduces weight while ensuring necessary strength, profoundly enhancing the performance and durability of bicycle frames.



Aluminum tube drawing technology extends far beyond merely enhancing structural design of bicycle frames; it encompasses every detail from selecting raw materials to final processing. The choice of suitable aluminum alloy is crucial in the production of bicycle tubing, as different alloys exhibit distinct physical properties that dictate the quality and performance of the finished product. For instance, 6061 aluminum alloy, known for its lightweight and durable characteristics, is extensively used in manufacturing frames that require a high stiffness-to-weight ratio.



The processing techniques for aluminum tubing are equally vital. Common methods include double and triple wall thickness applications. Double wall thickness entails thicker walls at both ends of the tube and a thinner midsection, providing better flexibility and shock absorption. Triple wall thickness involves thickening the walls at stress points while using thinner walls where less pressure is exerted, thus reducing overall weight. This design enhances the structural integrity and overall performance of the frame. During production, these aluminum frames undergo heat treatment, typically involving T6-level heating followed by rapid cooling, which helps stabilize the internal structure of the aluminum. A subsequent low-temperature process further increases the frame’s rigidity and strength, ensuring excellent performance under various riding conditions. These precise manufacturing techniques and material choices not only showcase innovations in lightweight bicycle frames but also significantly enhance overall riding performance and durability, propelling technological advancements in the cycling industry.

Distinctive Features of Taiwan's Cycling Industry


Precision Specialization in Taiwan's Bicycle Industry
<Precision Specialization in Taiwan's Bicycle Industry>



Within a 70-kilometer radius, Taiwan hosts nearly a thousand bicycle manufacturers, creating a dense supply network characterized by both competition and cooperation. This unique structure is a key driver of innovation in Taiwan's cycling technology. The Taiwanese bicycle industry is renowned for its specialized and segmented manufacturing processes, distinct from traditional whole-bike assembly, featuring a clear division of labor. In this industry, no single manufacturer produces an entire bicycle; instead, numerous specialized small and medium-sized enterprises collaborate, each producing different bicycle components that are assembled into complete products.

The manufacturing process for bicycle frames involves multiple companies, including mold makers, aluminum tubing processors, welders, surface treatment specialists, and heat treatment facilities. Frame manufacturing begins with precise design stages where engineers use advanced software like AutoCAD to draft frame diagrams and tube-drawing molds. These designs are then forwarded to manufacturing plants for actual production, making 'frame manufacturing' a multi-location, multi-stage engineering project.

The annual Taipei International Bicycle Show not only showcases the latest product technologies under this collaborative division of labor but also serves as a vital platform for industry networking and partnerships, highlighting Taiwan's central role in the global bicycle industry. Taiwan's distinctive industry organization, clear manufacturing processes, and commitment to high-quality products allow it to hold a significant position in the global market, enhancing its international competitiveness and establishing Taiwan as a key hub in global bicycle manufacturing.
Flexible Production Capabilities to Meet Diverse Demands

The Taiwanese bicycle industry is distinguished not only by its technological innovation and experienced workforce but also by its highly flexible supply chain. As the global bicycle market increasingly shifts towards small-scale diversification and customization, Taiwan's bicycle industry can swiftly adapt to market changes, offering tailor-made solutions. Particularly, the bicycle industry cluster located in central Taiwan can complete the assembly and export of entire bicycles in a remarkably short time, a level of efficiency unmatched by other regions.

However, with the rapid development of global technology, changes in urban lifestyles, and the rise and fall of bike-sharing, there is a question whether the Taiwanese bicycle industry can continue to meet market demands or if it is gradually drifting away from them. The future development of the industry may need to start from a new perspective of riding culture to fulfill consumers' psychological and functional needs. Therefore, nurturing insight, design prowess, innovation, and integration skills will be crucial challenges that the Taiwanese bicycle industry faces during its transformation and upgrading process.



Future Trends – The Rise of Integrated Handlebars?

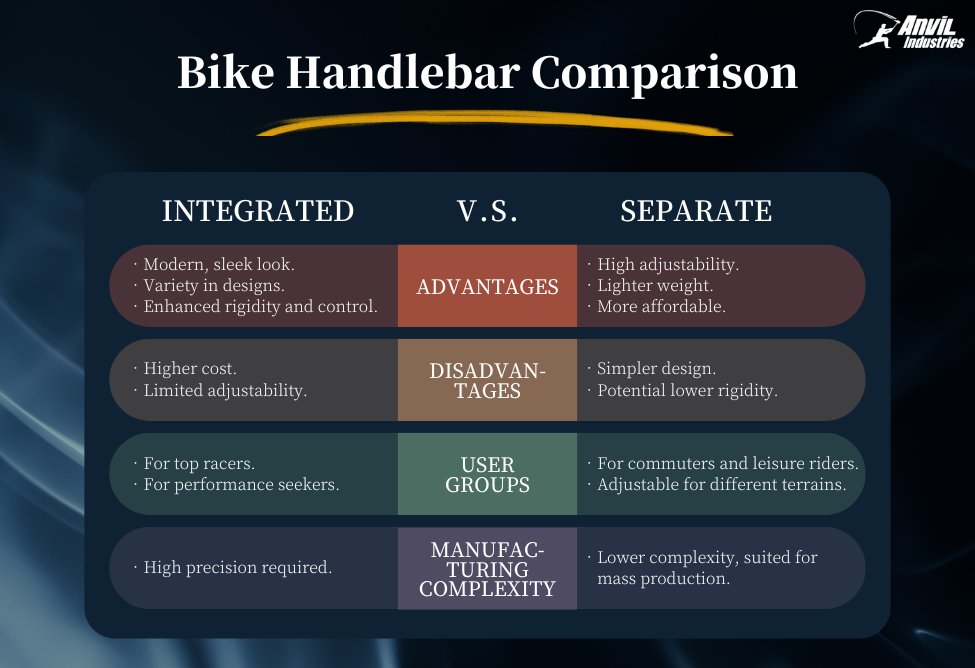

Comparison of Integrated vs. Separate Handlebars
<Comparison of Integrated vs. Separate Handlebars>

Integrated Handlebars: Shaping the Future of Bicycling Technology and Design



As bicycle technology advances and cycling culture evolves, the market has seen numerous innovative designs emerge, among which integrated handlebars have become a significant trend in the bicycle industry. Known for merging handlebars and the stem into one seamless unit, integrated handlebars offer enhanced rigidity and aesthetic appeal over traditional separate handlebars and stems, gaining increasing favor among professional cyclists and cycling enthusiasts.

The single-structure design of integrated handlebars bolsters rigidity, enabling better distribution of frontal impact forces and minimizing control instability caused by handlebar rotation or deformation. For athletes in competitive cycling, where extreme speeds and precise control are paramount, increased rigidity translates into faster response times and more accurate vehicle handling—critical during high-speed descents and sharp turns. Additionally, the streamlined design of integrated handlebars not only modernizes the appearance but also blends more seamlessly with the overall frame, offering a smoother look that appeals to those who value aesthetics in bicycle design.

Moreover, integrated handlebars reduce component seams, incorporating aerodynamic design features that effectively lower wind resistance while making the bicycle easier to clean—details that prove especially beneficial over long-term use.

With the ongoing development and innovation within the bicycle industry, the application of integrated handlebars is expected to expand further. This design not only enhances performance but also boosts the visual appeal of bicycles, meeting the market’s dual expectations for functionality and aesthetics. As consumer demands for bicycle performance and appearance continue to rise, integrated handlebars are anticipated to play a pivotal role in driving bicycle innovation.

Conclusion


Boost Your Bicycle Products with Professional Tube Drawing! Click here to learn more about our advanced precision drawn aluminum tubing technology and submit your inquiry form today. Let us help you elevate your product!
